Silicon nitride heaters are advanced ceramic heating components engineered for rapid thermal response, exceptional durability, and reliable operation in demanding high-temperature environments. Compared with traditional metal heating elements, silicon nitride (Si3N4) heaters offer superior thermal conductivity, higher mechanical strength, excellent thermal shock resistance, and significantly longer service life, making them an increasingly preferred solution across industrial, automotive, energy, and appliance industries.
As modern heating systems continue evolving toward higher efficiency, compact structures, lower energy consumption, and smarter temperature control, silicon nitride ceramic heaters have become a critical technology for next-generation thermal management and ignition applications.
What Is a Silicon Nitride Heater?
A silicon nitride heater is a ceramic-based heating element manufactured from high-purity silicon nitride materials through advanced forming and high-temperature sintering processes. The material combines excellent electrical insulation properties with high thermal conductivity and outstanding mechanical performance.
Engineered for rapid heating, exceptional durability, thermal stability, and energy-efficient performance, silicon nitride heaters provide reliable heating solutions for demanding industrial and ignition applications.
Silicon nitride heaters deliver extremely fast thermal response and can reach operating temperatures within seconds. Their high thermal conductivity improves heating efficiency, reduces startup time, and lowers overall energy consumption in ignition systems.
Engineered for demanding environments, silicon nitride heaters withstand repeated rapid heating and cooling cycles without cracking. Their superior thermal shock resistance ensures long-term structural stability under extreme temperature changes.
Compared with traditional metal heating elements, silicon nitride heaters offer excellent oxidation resistance, corrosion resistance, and thermal durability. This significantly extends service life while reducing maintenance frequency and replacement costs.
Silicon nitride ceramic heaters combine outstanding mechanical strength with efficient heat transfer performance. Their compact, lightweight design supports high-temperature operation, equipment miniaturization, and energy-saving thermal management solutions.
Make your first quality for electrical services Find Your Solution
Electric silicon nitride ceramic heaters deliver fast, stable, and reliable heat for industrial equipment, sealing systems, analytical instruments, and custom thermal modules in demanding operating environments.

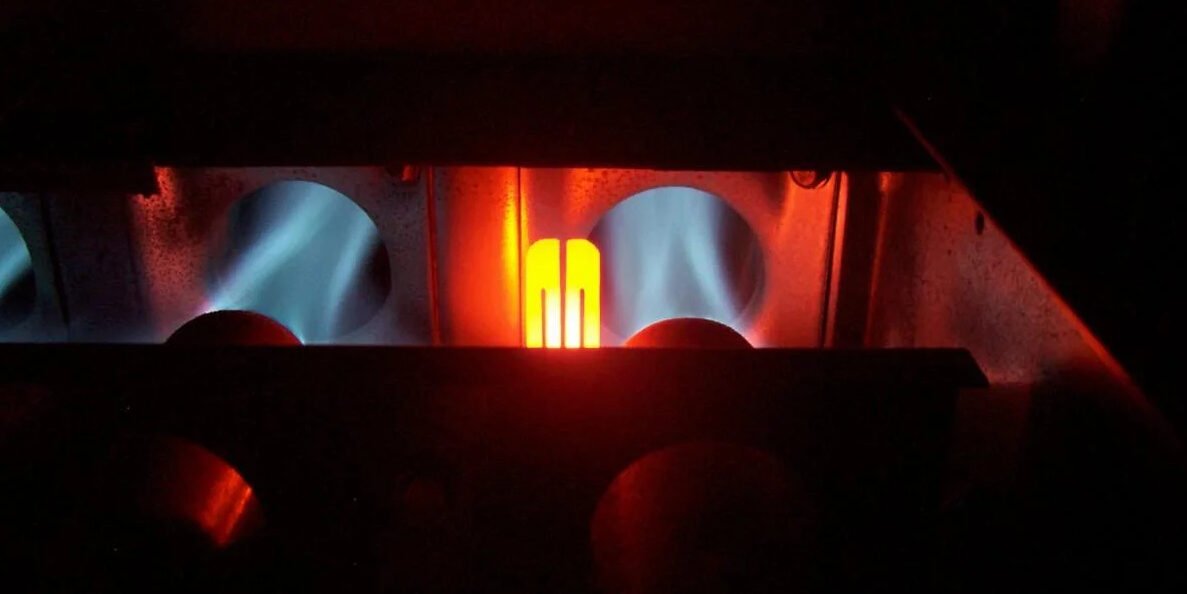

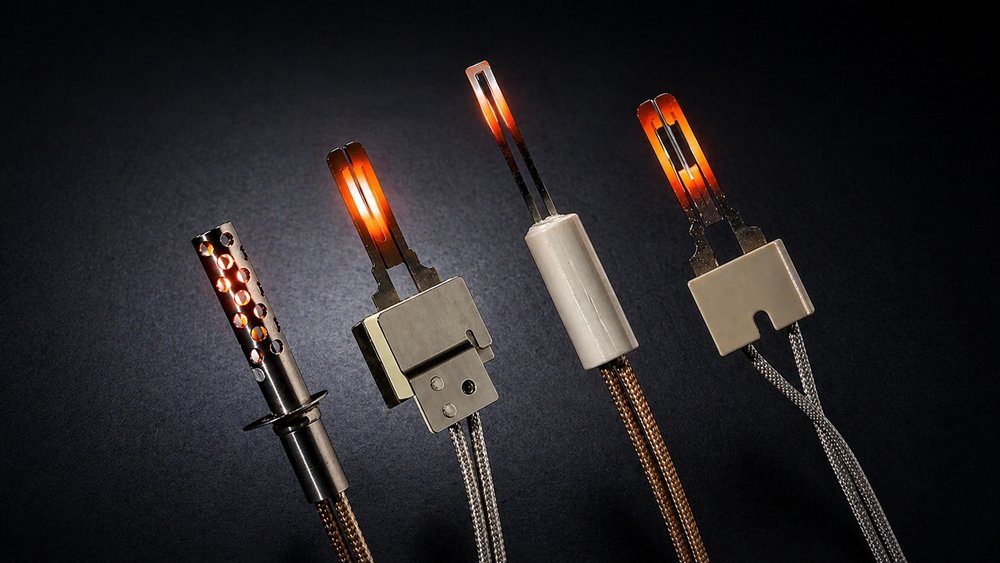

Silicon nitride hot surface igniters provide fast, stable, and reliable ignition for gas burners, furnaces, boilers, and heating equipment

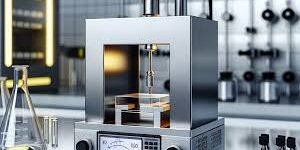

Silicon nitride ceramic heaters provide efficient heat generation for laboratory drying, curing, coating, and small-scale thermal processing equipment.
For CNC machines and high-speed spindles, silicon nitride bearings reduce friction, vibration, and heat. This enables higher rotational speeds.
Advanced Silicon Nitride heating technology delivers superior thermal shock resistance, clean heating performance, and long-term reliability for precision thermal systems.
Ultra-Fast Thermal Response | Semiconductor & Industrial Grade | Ceramitell Solutions
| Parameter | Unit | Specification Range |
|---|---|---|
| Max. Surface Temperature | °C | Up to 1000 (Continuous) / 1100 (Peak) |
| Maximum Watt Density | W/cm² | 5 - 15 (Air) / 15 - 150 (System Dependent) |
| Heating Rate (Unloaded) | °C/sec | 5 - 20 (Application Adjustable) |
| Temperature Uniformity | °C | ± 1.0 - ± 3.0 (Across surface) |
| Insulation Resistance (RT) | MΩ | > 100 (at 500V DC) |
| Dielectric Strength | kV | > 3.0 (50Hz, 1min) |
| Voltage Range | V | 12V – 400V (AC/DC) |
| Property | Unit | Nominal Value |
|---|---|---|
| Density | g/cm³ | 3.20 - 3.25 |
| Thermal Conductivity (25°C) | W/(m·K) | 9 - 18 (Standard GPS-Si₃N₄) |
| Flexural Strength | MPa | 750 - 900 |
| Compressive Strength | MPa | Up to 2000 |
| Fracture Toughness (KIC) | MPa·m1/2 | 6.0 - 8.0 |
| CTE (20-1000°C) | 10⁻⁶/K | 2.8 - 3.0 |
|
Thermal Shock Excellence
Low CTE and high fracture toughness enable rapid temperature cycling from ambient to 1000°C without structural fracture or fatigue. |
Clean Heating Environment
Fully encapsulated heating circuit ensures zero outgassing and metal ion contamination, ideal for semiconductor and medical use. |
|
High Energy Efficiency
Optimized thermal conductivity and low thermal mass support localized heating with minimal parasitic energy loss and fast ramp-up. |
Chemical Inertness
Excellent resistance to acids, alkalis, and oxidation. Resists corrosion by molten non-ferrous metals like Aluminum and Zinc. |
Ceramitell provides extensive customization for industrial integration:
At Ceramitell, we don’t just machine ceramics; we master the material science behind them. Our components are crafted from premium Beta-Silicon Nitride, characterized by its unique hexagonal crystal structure (Space Group: P63/m).
As shown in the crystallographic model, the strong covalent bonding and interlocking SiN4 tetrahedra provide the exceptional fracture toughness and thermal shock resistance that our clients demand. By optimizing the phase transformation and grain growth during the sintering process, we ensure that every precision-machined part leverages these atomic-level advantages:
Exceptional Hardness: Ideal for high-wear environments and heavy-duty industrial applications.
Thermal Stability: Maintains structural integrity at temperatures exceeding 1800°F (1000°C).
Optimized Microstructure: Our deep expertise in machining Beta-phase ceramics ensures minimal surface defects and maximum component lifespan.
Whether you require complex geometries for semiconductor equipment or high-strength components for automotive engineering, our technical expertise guarantees a solution where material science meets precision craftsmanship.
