Product · Ceramic Igniters — Hot Surface

Hot surface igniters,
gas & fuel burning.

Ceramitell's hot surface igniter range for gas appliances (furnaces, water heaters, boilers, HVAC) and fuel-burning equipment (pellet stoves, oil heaters, biomass boilers). Si₃N₄ ceramic element, 3-second heat-up, 100,000+ cycle life. Drop-in replacement for major OEM part numbers.

100K+

Cycle Life

3 sec

Heat-Up

Gas + Fuel

2 Application Types

UL/CE

Certified

Request a Quote →Download Datasheet ↓

Hot Surface Igniters · At a Glance

Element MaterialSi₃N₄ (silicon nitride)

Ignition TypeHot surface — resistive

Voltage Range12V DC · 120V AC · 230V AC

Surface Temp1,100–1,300°C

Heat-Up Time3 seconds

Cycle Life100,000+

Gas VariantsGas HSI/120 · Gas HSI/230 · Gas HSI/12

Fuel VariantsFuel HSI/230 · Fuel HSI/120 · Fuel HSI/OIL

CertificationsUL Recognized · CE Marked

Sample Lead Time48 h stock

Certifications & Standards

ISO 9001IATF 16949CERoHS · REACHUL Recognized

01 · Product Specifications

6 models — gas & fuel variants.

Three Gas HSI variants (furnaces, water heaters, HVAC) and three Fuel HSI variants (pellet stoves, oil boilers, biomass). Same Si₃N₄ element core — different voltage and environmental rating.

★ Hot Surface

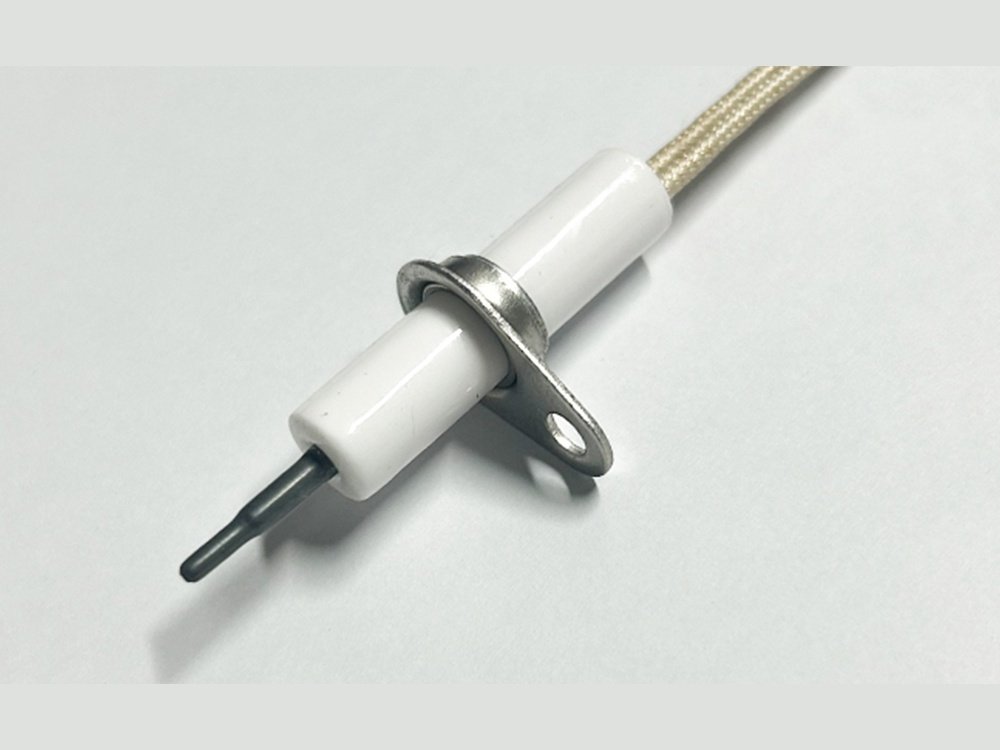

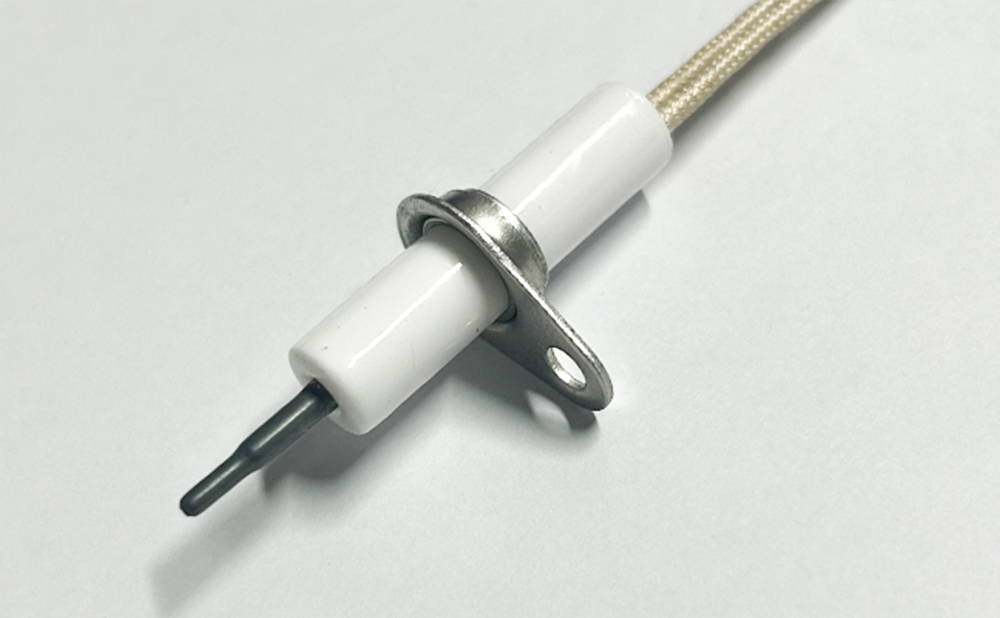

BLK-HS1-24 Series

Hot Surface · Si₃N₄

Voltage12–230V AC

Power300W

Surface Temp1,100–1,300°C

Heat-Up3sec

Cycle Life100,000+

CertificationUL / CE

Use: BLK-HS1-24 Series — furnaces · water heaters · HVAC · pellet stoves

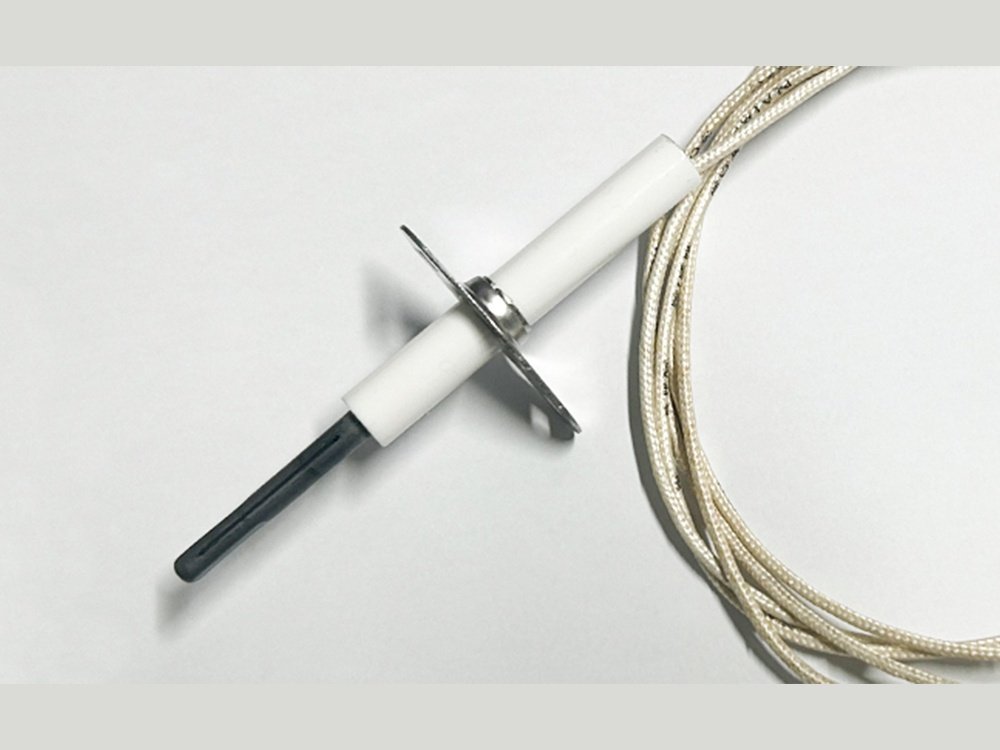

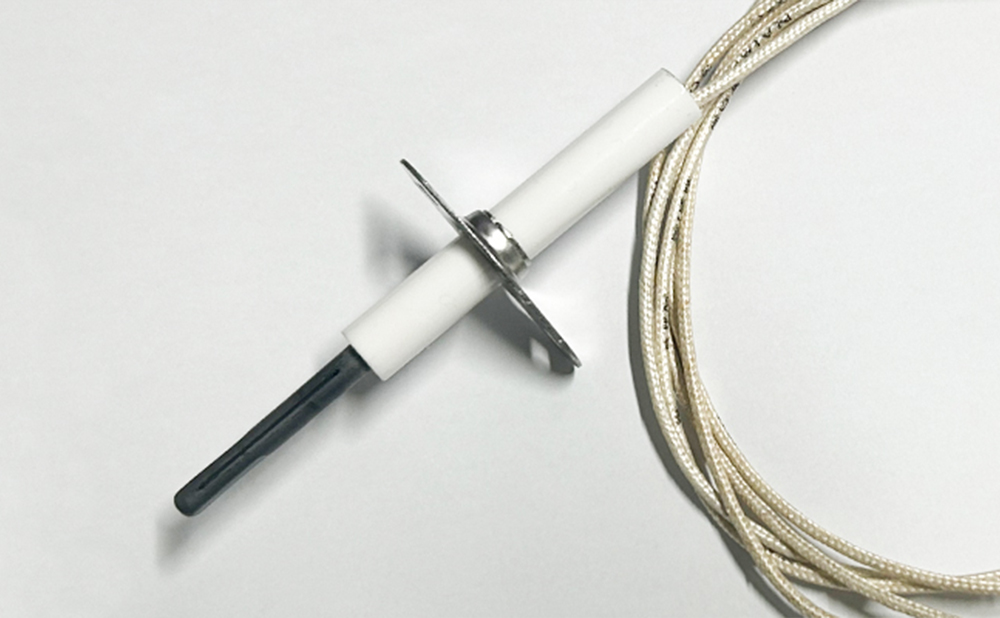

BLK-HS4-110V90W

110 V AC

Voltage110V AC

Power90W

Surface Temp1,100–1,300°C

Heat-Up3sec

Cycle Life100,000+

CertificationUL / CE

Use: BLK-HS4-110V90W — furnaces · water heaters · HVAC · pellet stoves

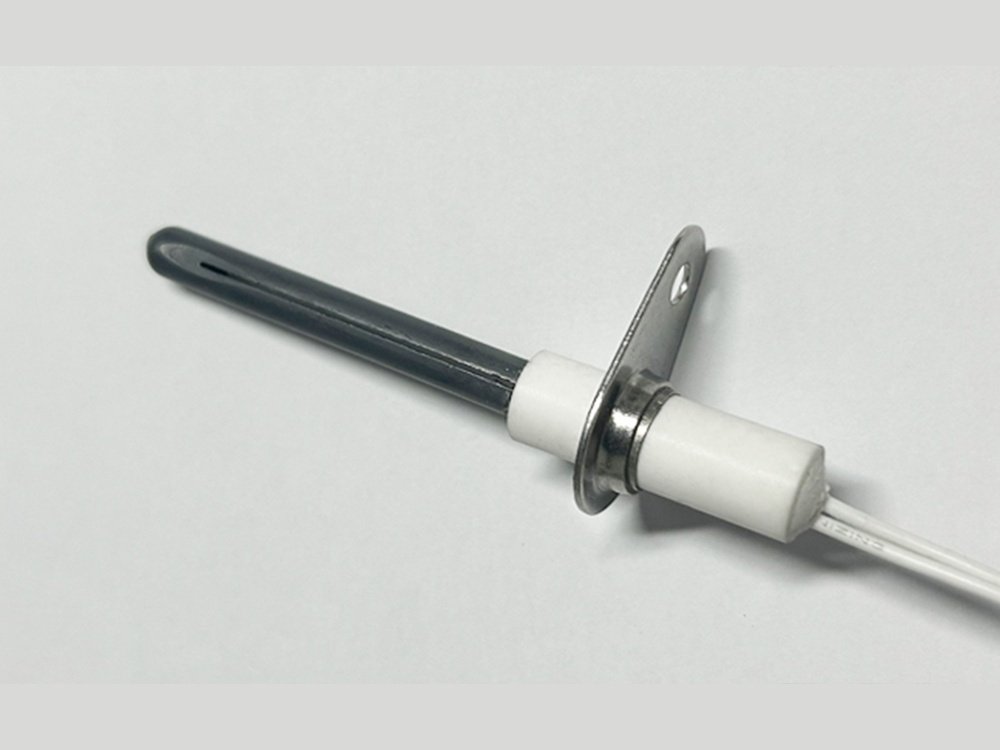

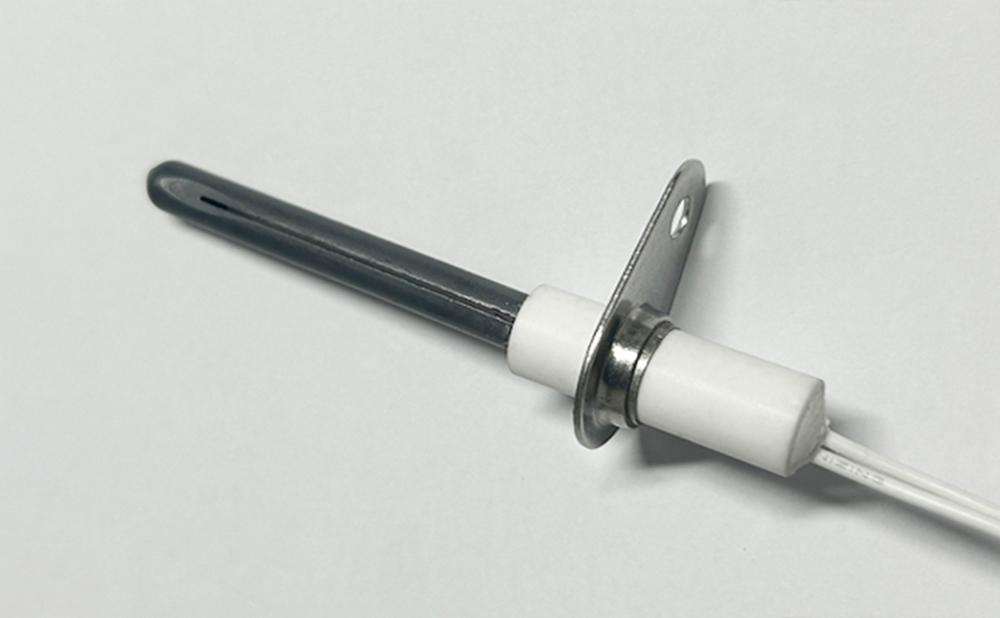

BLK-HS5-220V160W

230 V · Europe / International

Voltage220V AC

Power160W

Surface Temp1,100–1,300°C

Heat-Up3sec

Cycle Life100,000+

CertificationUL / CE

Use: BLK-HS5-220V160W — furnaces · water heaters · HVAC · pellet stoves

All HSI models: Si₃N₄ element · insulation resistance ≥100 MΩ @ 500V DC · ambient range −40 to +85°C · custom voltage/geometry available at 500+ unit MOQ.

02 · Datasheet & Downloads

Drawings, datasheets, and certs.

Everything your engineering and procurement teams need. Email engineering@ceramitell.com for STEP/DWG files.

📄

HSI Product Datasheet

PDF · all 6 models · full specifications

Download PDF →

📐

Dimensional Drawings

STEP · DWG · PDF · on request

Request drawings →

🛡️

Certification Files

UL Recognition · CE DoC · ISO 9001

Request scans →

🔄

OEM Compatibility Guide

Norton · White-Rodgers · Robertshaw

Download guide →

★ Engineering Case · Italian Pellet Stove OEM

180,000 units/year, −38% warranty returns, 7-year partnership.

One of our longest-running OEM partners — switched from a European competitor's alumina igniters to our BLK series Si₃N₄ in 2018. Warranty returns dropped 38% in the first 12 months; cold-start failures (sub-zero installs) dropped 32%. Now in year 7 of supply.

Request Free Samples →Pellet Stove Case →

Switch Outcome · Year 1

Al₂O₃ → Si₃N₄ outcome

−38% Warranty returns vs prior
−32% Cold-start failures
+22% Avg igniter service life
180K/yr Current production volume

04 · Certifications & Compliance

Certified for global markets.

All HSI models ship with a certificate of conformity. Full certification documentation available for OEM qualification programs.

UL Recognized Component under UL 60730-1 (automatic electrical controls for household use). Applies to Gas HSI/120, Fuel HSI/120. Documentation available for OEM controls qualification.

North America

CE marked for European Union shipments. Declaration of Conformity provided with CE-marked models. Applies to Gas HSI/230, Gas HSI/12, Fuel HSI/230, Fuel HSI/OIL.

European Union

RoHS

RoHS and REACH compliant across all HSI models. Material declarations and substance declarations available for product compliance screening and registration.

EU · Global

ISO

Produced in an ISO 9001:2015 certified facility. Full lot traceability, incoming inspection records, and PPAP-level documentation for OEM qualification programs.

Quality System

05 · Get a Quote

Request samples for your application.

Tell us your appliance model, current igniter part number, voltage, and annual volume. We reply within 24h with a quote and fitment confirmation.

Free samples, 48-hour dispatch on stock 120V/230V — no MOQ.
Drop-in compatibility check — send part number, we confirm fit.
OEM volume pricing from 5,000 units/year.
UL + CE certified — both markets from one supplier.

Free Quote · Reply in 24h

Request a quote

Include your appliance model or current igniter part number for fastest fitment confirmation.

06 · Engineering FAQ

The questions we get most.

What is the difference between Gas HSI and Fuel HSI?

The ceramic element and electrical construction are identical. The difference is the environmental and duty cycle rating. Gas HSI is rated for dry, clean indoor environments at 5–15 cycles/day. Fuel HSI is rated for condensate-rich, ash/particulate environments at 15,000–20,000 cycles/heating season. If in doubt, specify Fuel HSI — it handles both duty profiles.

Can HSI/120 and HSI/230 replace my existing Al₂O₃ igniter?

In most gas furnace and pellet stove applications, yes — the HSI is a direct mechanical and electrical drop-in for the common Al₂O₃ platforms (Norton, White-Rodgers, Robertshaw). Send your current part number and we confirm dimensions and wiring before shipping samples. Fitment confirmation in 24 hours.

Why does the Fuel HSI last so much longer than Al₂O₃ in pellet stoves?

Three material properties: (1) Si₃N₄ fracture toughness 6–7 MPa·m½ vs Al₂O₃ 3–4 MPa·m½ — thermal shock cracks propagate 2× slower. (2) Si₃N₄ thermal conductivity 20 W/m·K vs Al₂O₃ 3 W/m·K — heat dissipates faster, preventing local hot spots under ash deposits. (3) Si₃N₄ near-zero porosity — no moisture absorption, so no freeze-fracture from condensate.

What is the minimum order for OEM pricing?

Samples: no MOQ, 48-hour dispatch. Production pricing tiers start at 5,000 units/year. Custom voltage (277V, 480V, 24V DC) or custom geometry: 500-unit minimum order. Private-label (laser marking): 1,000 units minimum.

Are fuel igniters suitable for oil-fired boilers and kerosene heaters?

Yes — the Fuel HSI/OIL variant is specifically rated for oil vapour environments. It operates at 1,200–1,300°C surface temperature (slightly higher than standard pellet stove duty) to ensure reliable oil vapour ignition. Si₃N₄'s chemical resistance to hydrocarbon deposits is superior to Al₂O₃ in oil burner applications.

Can you supply private-label igniters with our brand markings?

Yes — laser marking on the metal bracket and insulator collar at no additional cost on production orders of 1,000+ units. Custom packaging (branded box, polybag, label) available at 5,000+ units. Mutual NDA standard before any private-label project.
